Protocol Streams

Aegis includes a full protocol streaming engine alongside its HTTP reverse proxy. Streams handle raw TCP and UDP traffic — database connections, game servers, mail relays, SSH tunnels, DNS forwarding, VPN endpoints, or any non-HTTP protocol that needs port-level proxying with access control.

Overview

Streams operate at Layer 4 (transport), forwarding raw bytes between clients and upstreams without HTTP awareness. Each stream binds to a listen address and port, relays traffic to an upstream host and port, and optionally applies TLS termination, access control, bandwidth limits, and health checks.

Client ──► Aegis Stream Listener ──► Upstream Server
           (TCP/UDP, optional TLS)

Unlike HTTP proxy hosts (which route by Host header), streams route by listen port — each stream owns a unique port.

Protocols

Protocol	Description
TCP	Reliable connection-oriented streaming with bidirectional relay
UDP	Connectionless datagram forwarding with stateful NAT table
TCP+UDP	Both protocols on the same port (separate listeners)

Stream Configuration

Each stream host supports the following settings:

Setting	Type	Description
`name`	string	Human-readable name for the stream
`protocol`	string	`tcp`, `udp`, or `tcp+udp`
`listen_address`	string	Bind address (e.g., `0.0.0.0`, `127.0.0.1`)
`listen_port`	integer	Port to listen on (1–65535)
`upstream_host`	string	Upstream server hostname or IP
`upstream_port`	integer	Upstream server port
`enabled`	boolean	Toggle stream on/off
`max_connections`	integer	Maximum concurrent connections (0 = unlimited)
`connection_timeout_seconds`	integer	TCP dial timeout to upstream
`idle_timeout_seconds`	integer	Close connection after idle period
`proxy_protocol_version`	integer	Proxy Protocol version: `0` (off), `1`, or `2`
`whitelist_cidrs`	array	Allowed source IP CIDRs (empty = allow all)
`blacklist_cidrs`	array	Blocked source IP CIDRs
`ssl_enabled`	boolean	Enable TLS termination on the listener
`ssl_cert_id`	integer	Certificate ID for TLS (from the certificate store)
`upload_rate_bytes`	integer	Max upload bandwidth in bytes/sec (0 = unlimited)
`download_rate_bytes`	integer	Max download bandwidth in bytes/sec (0 = unlimited)
`health_check_enabled`	boolean	Enable periodic upstream health checks
`health_check_interval_seconds`	integer	Health check interval
`log_connections`	boolean	Log connection events (connect, disconnect, bytes transferred)
`notes`	string	Free-form notes

TCP Streaming

TCP streams use bidirectional relay — two goroutines running io.Copy in parallel, one for each direction. When either direction completes (client closes or upstream closes), both sides are torn down.

Client ──[TCP]──► Aegis ──[TCP]──► Upstream
         ◄──────────────◄──────────
         (full-duplex bidirectional relay)

Connection Lifecycle

Client connects to the stream’s listen port
Source IP checked against whitelist/blacklist CIDRs
If TLS enabled, TLS handshake with the configured certificate
Middleware chain runs (proxy protocol injection, connection counting, logging)
TCP connection opened to upstream host:port
Bidirectional relay starts (two io.Copy goroutines)
Connection closed when either side disconnects or idle timeout triggers
Connection stats recorded (bytes sent/received, duration)

UDP Streaming

UDP streams use a stateful NAT table to track client-to-upstream mappings. Since UDP is connectionless, Aegis maintains per-client state to correctly route response datagrams back to the originating client.

Client ──[UDP]──► Aegis ──[UDP]──► Upstream
         ◄──────────────◄──────────
         (NAT table maps client ↔ upstream)

NAT Table

Field	Description
`upstreamConn`	Dedicated UDP connection to upstream for this client
`clientAddr`	Client’s source address for return routing
`sourceIP`	Parsed client IP for access control
`lastActive`	Timestamp of last activity (for timeout eviction)
`bytesSent` / `bytesRecv`	Per-client traffic counters

Stale NAT entries (no activity within the configured idle timeout) are periodically evicted.

TLS Termination

Streams support TLS termination on the listener side, using certificates from the Aegis certificate store (the same certificates used for HTTP proxy hosts).

Set ssl_enabled: true and provide an ssl_cert_id referencing a stored certificate
TLS is only supported on TCP (and the TCP portion of TCP+UDP)
The upstream connection is plain TCP — TLS is terminated at Aegis

This enables Aegis to secure raw TCP protocols (databases, MQTT, custom protocols) with centrally managed certificates.

Proxy Protocol

Streams support the PROXY protocol for passing the original client IP to the upstream server.

Version	Description
`0`	Disabled (default)
`1`	Human-readable text format (HAProxy v1)
`2`	Binary format (HAProxy v2)

When enabled, Aegis prepends the PROXY protocol header before relaying data to the upstream, so the upstream can see the real client IP even though the TCP connection originates from Aegis.

Access Control

Each stream has its own whitelist and blacklist CIDR lists, evaluated on every new connection:

If whitelist is non-empty, only IPs matching a whitelist entry are allowed
If the IP matches a blacklist entry, the connection is rejected
Rejected connections are logged (if connection logging is enabled)

Bandwidth Limiting

Per-stream upload and download rate limits are enforced in bytes per second:

Setting	Description
`upload_rate_bytes`	Max client-to-upstream throughput (bytes/sec)
`download_rate_bytes`	Max upstream-to-client throughput (bytes/sec)

Set to 0 for unlimited. Rate limiting is applied per-connection via IO wrappers.

Health Checks

When enabled, Aegis periodically verifies that the upstream is reachable:

A TCP dial to upstream_host:upstream_port is attempted at the configured interval
If the dial succeeds, the stream is marked healthy
If the dial fails, the stream is marked unhealthy and the error is recorded
Health status is visible in the admin UI and via the stats API

Connection Logging

When log_connections is enabled, Aegis records each connection:

Field	Description
`source_ip`	Client IP address
`bytes_sent`	Bytes transferred client → upstream
`bytes_received`	Bytes transferred upstream → client
`duration_ms`	Connection duration in milliseconds
`action`	`allowed` or `blocked`
`disconnect_reason`	Why the connection ended (idle timeout, client close, upstream close, etc.)

Runtime Statistics

Each stream exposes real-time counters:

Stat	Description
`listening`	Whether the listener is active
`healthy`	Upstream health check status
`active_connections`	Current open connections
`total_connections`	Total connections since last reload
`bytes_sent`	Total bytes client → upstream
`bytes_received`	Total bytes upstream → client

Port Validation

Aegis validates stream ports before binding:

Port must be between 1 and 65535
Port must not conflict with the HTTP proxy (:80), HTTPS proxy (:443), or admin UI (9443)
Port must not conflict with another stream’s listen port
Warnings are issued for well-known reserved ports

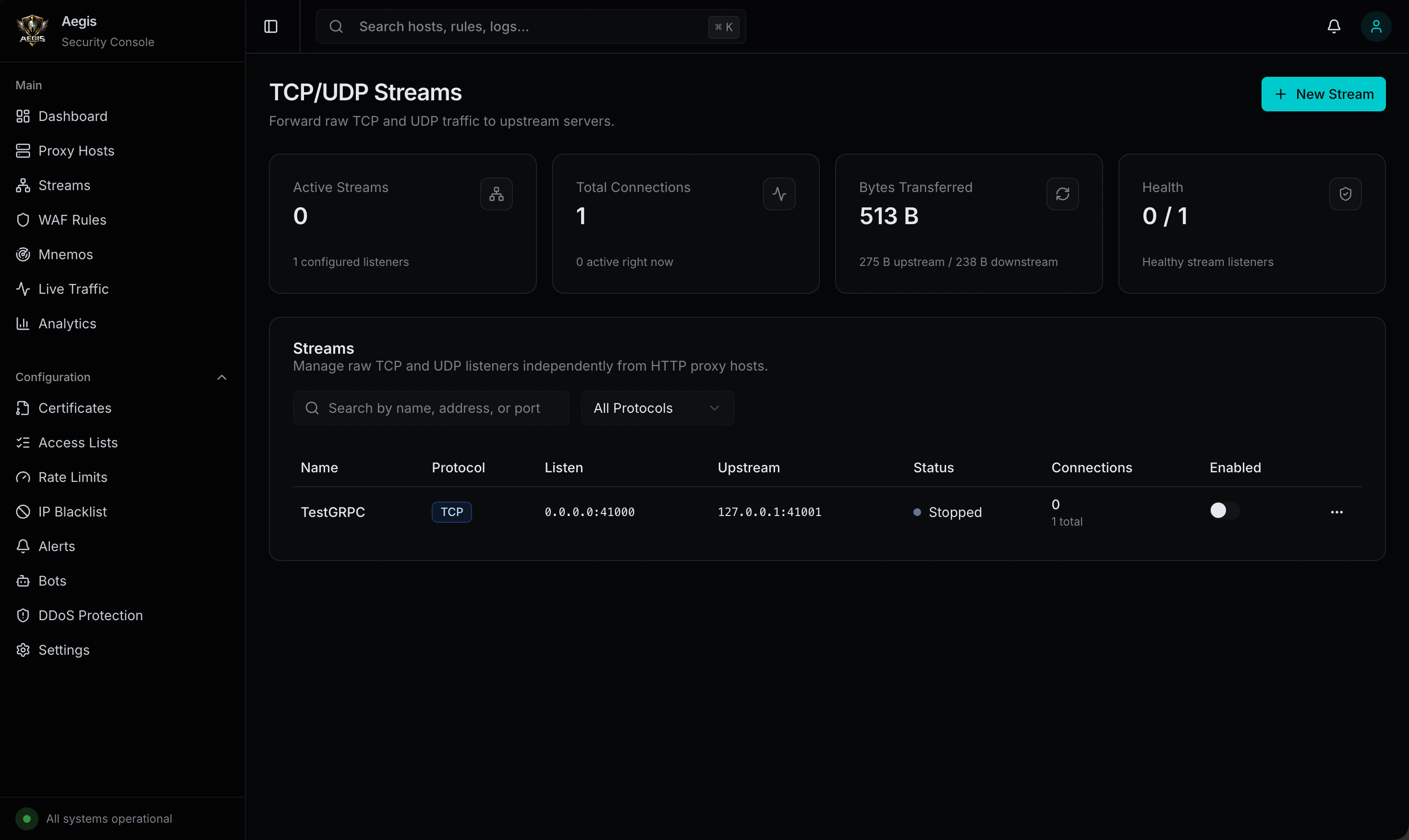

Admin UI

Streams have their own management page in the Aegis admin dashboard:

Create, edit, enable/disable, and delete streams
Real-time connection stats and health status
Connection log viewer
Protocol, TLS, and access control configuration
Bandwidth and timeout settings

API Reference

Method	Path	Description
`GET`	`/api/v1/streams`	List all stream hosts with runtime status
`POST`	`/api/v1/streams`	Create a new stream host
`GET`	`/api/v1/streams/{id}`	Get a stream host by ID
`PUT`	`/api/v1/streams/{id}`	Update a stream host
`DELETE`	`/api/v1/streams/{id}`	Delete a stream host
`GET`	`/api/v1/streams/stats`	Get runtime stats for all streams
`POST`	`/api/v1/streams/validate-port`	Validate a port before binding
