DDoS Protection

Aegis includes a kernel-level DDoS protection engine built on Linux XDP (eXpress Data Path) and eBPF. Packets are inspected and dropped at the network device driver level — before they reach the kernel’s TCP/IP stack — making it one of the fastest possible filtering points in the Linux networking pipeline.

Requirements

Requirement	Details
Platform	Linux only
Kernel	5.8+ with eBPF and XDP support
Architecture	x86-64 and ARM64 (pre-compiled BPF bytecode for both)

On non-Linux platforms, the DDoS service returns a stub message indicating the feature requires Linux.

Architecture Overview

┌───────────────────────────────────────┐
│                     NETWORK TRAFFIC                          │
└───────────────────┬───────────────────┘
                                │
                               ▼
               ┌─────────────────┐
               │   XDP Program (Kernel)     │
               │   aegis_xdp_filter         │
               │                            │
               │  ban_map  ─► XDP_DROP    │
               │  rate_map ─► XDP_DROP    │
               │  config_map (thresholds).  │
               └──────┬──────────┘
                          │
           ┌────────┼─────────┐
           │              │              │
     XDP_PASS        XDP_DROP       Ring Buffer
           │         (banned/       (events)
           │          rate/syn)          │
           ▼             │            ▼
    TCP/IP Stack          │    ┌───────────┐
           │              │    │  readEvents()    │
           ▼             │    │  goroutine       │
    Aegis Reverse         │    └─────┬──────┘
    Proxy + WAF           │              │
                          │             ▼
                          │    ┌───────────┐
                          │    │ processEvents()  │
                          │    │ goroutine        │
                          │    │ • DB logging     │
                          │    │ • Auto-ban logic │
                          │    └────────┬──┘
                          │             │
                          │             ▼
                          └────► ban_map (kernel)
                                 (auto-ban writes
                                  IP back to BPF)

How It Works

Kernel-Level Filtering (XDP)

The XDP program aegis_xdp_filter attaches directly to the network interface and processes every inbound packet:

Check enable state — reads config_map[0]; if disabled, returns XDP_PASS
Parse Ethernet/IP headers — extracts source IP, destination IP, protocol
Parse L4 headers — if TCP, checks the SYN flag; if UDP, extracts ports
Ban map lookup — checks ban_map[src_ip]; if found and not expired, drops immediately with XDP_DROP
Rate limit check — looks up rate_map[src_ip] for per-IP packet and SYN counters within a 1-second sliding window; drops if thresholds exceeded
Pass — increments stats and returns XDP_PASS

BPF Maps

Map	Type	Capacity	Purpose
`ban_map`	Hash	100,000 IPs	Banned IP lookup (key: uint32 IP, value: expiry + reason + drop count)
`rate_map`	LRU Hash	500,000 IPs	Per-IP packet/SYN counters with 1-second window (auto-evicts oldest)
`config_map`	Array	1 entry	Global thresholds: packets/sec, SYN/sec, sample rate, enabled flag
`stats_map`	Array	4 entries	Atomic counters: passed, ban drops, rate drops, SYN drops
`events`	Ring Buffer	256 KB	Kernel-to-userspace event stream

Kernel Data Structures

Ban Entry:

expires_ns    — Monotonic timestamp (0 = permanent ban)
reason        — Code: 1=manual, 2=rate_limit, 3=syn_flood, 4=app_layer
drop_count    — Atomic counter of packets dropped for this IP

Rate Entry:

window_start_ns — Start of the current 1-second window
packet_count    — Total packets in current window
syn_count       — TCP SYN packets in current window

Global Config:

packets_per_second — Global PPS threshold (0 = disabled)
syn_per_second     — Global SYN/sec threshold (0 = disabled)
event_sample_rate  — Emit 1 pass event per N packets
enabled            — Master enable flag

Rule Types

`ip_ban` — Direct Kernel-Level Ban

The most direct kernel rule. When you save an ip_ban rule, the Go service writes the IP into the BPF ban_map immediately. The XDP program checks ban_map on every packet and returns XDP_DROP for matches.

Enforcement: Kernel-level, per-IP
Latency: Immediate — packets never reach the TCP/IP stack

`cidr_ban` — CIDR Block Ban

Currently only /32 CIDRs (single IPs) are synced into the kernel ban map. Broader CIDRs (e.g., /24) are not yet implemented in the XDP program — the service logs a warning for non-/32 entries.

Enforcement: Kernel-level for /32 only
Broader CIDR support: Planned

`rate_limit` — Packets Per Second Threshold

Rate limit rules are not independently represented in the kernel. Instead, the service computes a single effective global PPS threshold from all enabled rate_limit rules and the default config, then writes that value into config_map. The XDP program enforces one packets_per_second value against per-IP counters. Threshold computation:

Start with the configured DefaultPPS
For each enabled rate_limit rule with a packets_per_second value > 0: take the minimum
The strictest enabled rule wins

This means:

Adding a stricter rate_limit rule changes the kernel threshold immediately
Adding a looser rule has no effect if a stricter enabled rule already exists
The XDP program always reads one current packets_per_second value from config_map
Enforcement: Kernel-level, single global threshold

`syn_limit` — SYN Packets Per Second Threshold

Same architecture as rate_limit. The service computes one effective SYN/sec threshold and writes it to config_map. The XDP program enforces that threshold against per-IP SYN counters.

Enforcement: Kernel-level, single global threshold

Rule Lifecycle

Every time a DDoS rule is created, updated, or deleted:

The service reloads all rules from the database
Recomputes effective global thresholds (minimum across all enabled rules + default)
Writes updated values into the kernel config_map
For ip_ban and /32 cidr_ban rules: syncs the ban_map directly

The kernel enforcement changes take effect on the very next packet.

Auto-Ban

When the kernel drops a packet due to rate or SYN threshold violations, it emits an event through the ring buffer. The userspace Go service reads these events and can automatically promote threshold violations into full bans:

Kernel drops packet, emits drop_rate or drop_syn event
readEvents() goroutine parses the event from the ring buffer
processEvents() goroutine calls handleAutoBan()
Auto-ban TTL is computed as the maximum of:
- Global AutoBanDuration config value
- The auto_ban_duration_sec of the first enabled matching rule
If TTL > 0: the source IP is written into the kernel ban_map with that TTL
Subsequent packets from that IP are dropped at the XDP level without rate-map evaluation

Ban Entry Lifecycle

Bans are stored with a monotonic expiration timestamp
The XDP program checks expiry on every lookup — expired entries are deleted inline
A cleanupLoop() goroutine runs every 30 seconds to sweep expired bans from userspace

Ban Reasons

Code	Reason	Source
1	`manual`	Admin-created ban via UI or API
2	`rate_limit`	Auto-ban from PPS threshold violation
3	`syn_flood`	Auto-ban from SYN/sec threshold violation
4	`app_layer`	Application-layer triggered ban

Event System

Event Types

Type	Description
`drop_banned`	Packet dropped because source IP is in ban map
`drop_rate`	Packet dropped because source IP exceeded PPS threshold
`drop_syn`	SYN packet dropped because source IP exceeded SYN/sec threshold
`pass`	Packet allowed through (sampled)

Event Sampling

To reduce ring buffer overhead on high-traffic deployments:

Drop events: Emitted every 100th dropped packet per ban entry
Pass events: Sampled at the configurable event_sample_rate (default: 1 in 1,000)

Event Data

Each event includes:

Source and destination IP
Source and destination port
Protocol (TCP, UDP, other)
Event type
Packets in current window
Drop count

Events are stored in SQLite with automatic retention cleanup (1 hour default).

Configuration

Location: Admin UI -> Config -> DDoS Protection

Setting	Default	Description
Enabled	`false`	Master toggle for DDoS protection
Interface	—	Network interface to attach XDP to (e.g., `eth0`)
Default PPS	—	Default packets-per-second threshold per IP
Default SYN/sec	—	Default SYN packets-per-second threshold per IP
Auto-Ban Duration	—	Seconds to ban IPs that exceed thresholds
Event Sample Rate	1000	Sample 1 in N passed packets for logging
Notify on Ban	`false`	Send admin notification when an IP is auto-banned
Notify on Attack	`false`	Send admin notification when an attack is detected

Real-Time Statistics

The stats endpoint reads directly from kernel BPF maps:

Metric	Source
Total Passed	`stats_map[0]` — atomic counter
Total Drop (Ban)	`stats_map[1]` — packets dropped by ban map
Total Drop (Rate)	`stats_map[2]` — packets dropped by PPS threshold
Total Drop (SYN)	`stats_map[3]` — packets dropped by SYN threshold
Active Bans	Count of entries in `ban_map`
Active Rules	Count of enabled rules in database
Tracked IPs	Count of entries in `rate_map` (LRU)

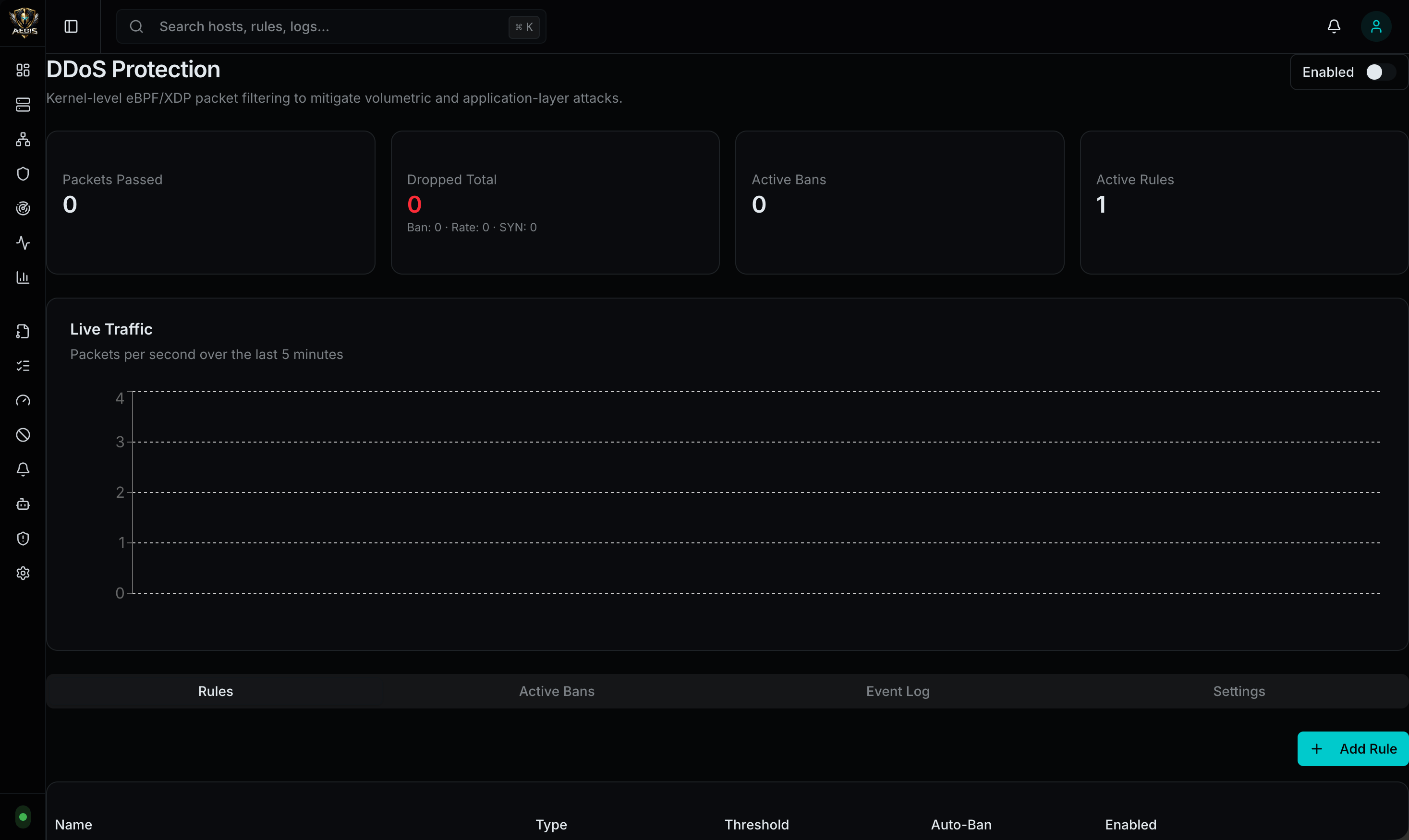

The admin dashboard displays a live traffic chart with a 5-minute window showing passed vs. dropped packets per second.

Service Lifecycle

Startup

Remove memory lock limit (rlimit.RemoveMemlock)
Load pre-compiled BPF bytecode (x86-64 or ARM64)
Attach XDP program to the configured network interface
Create ring buffer reader for kernel events
Sync configuration, rules, and bans to kernel maps
Launch goroutines: readEvents(), processEvents(), cleanupLoop()

Shutdown

Close ring buffer reader
Detach XDP program from network interface
Close BPF map file descriptors

Concurrency

Component	Model
Service state	`sync.RWMutex` for all shared state
BPF counters	Atomic operations (`__sync_fetch_and_add`)
Event pipeline	Buffered channel (10,000 capacity)
Cleanup	Background goroutine every 30 seconds

API Endpoints

Method	Path	Description
`GET`	`/api/v1/ddos/status`	XDP attachment status, kernel version, mode
`GET`	`/api/v1/ddos/interfaces`	List available network interfaces
`GET`	`/api/v1/ddos/config`	Get global DDoS configuration
`PUT`	`/api/v1/ddos/config`	Update config (restarts XDP if interface changes)
`GET`	`/api/v1/ddos/rules`	List all DDoS rules
`POST`	`/api/v1/ddos/rules`	Create a new rule
`GET`	`/api/v1/ddos/rules/{id}`	Get a specific rule
`PUT`	`/api/v1/ddos/rules/{id}`	Update a rule
`DELETE`	`/api/v1/ddos/rules/{id}`	Delete a rule
`GET`	`/api/v1/ddos/bans`	List active bans (with live drop counts from kernel)
`POST`	`/api/v1/ddos/bans`	Manually ban an IP
`DELETE`	`/api/v1/ddos/bans/{ip}`	Unban an IP
`GET`	`/api/v1/ddos/events`	Query event log (filterable by type, source IP, time)
`GET`	`/api/v1/ddos/stats`	Real-time stats from kernel maps

Current Limitations

Feature	Status
`ip_ban`	Fully kernel-level
`cidr_ban`	Only `/32` is kernel-level; broader CIDRs not yet in XDP
`rate_limit`	Kernel-level enforcement as one global effective threshold, not per-rule kernel objects
`syn_limit`	Same as `rate_limit` — single global threshold
IPv6	Not supported (IPv4 only)
Platform	Linux only (stub on macOS/Windows)

The UI is currently more expressive than the kernel implementation. Multiple rate_limit or syn_limit rules are collapsed into a single effective global threshold (the strictest enabled value). This means individual rules serve as policy definitions that influence the global kernel enforcement, not as independent kernel-level filter objects.
