Reverse Proxy
Aegis provides a full-featured reverse proxy engine as a drop-in replacement for Nginx Proxy Manager. All proxy configuration is managed through the admin UI and stored in SQLite.Capabilities
| Capability | Details |
|---|---|
| Multi-host routing | Domain-based routing via Host header; unlimited proxy hosts |
| Load balancing | Round-robin, least-connections, IP-hash policies per host |
| Health checks | Active HTTP health checks per upstream with configurable path and interval |
| WebSocket proxying | Transparent Upgrade/Connection header passthrough |
| SSL/TLS termination | Let’s Encrypt (ACME HTTP-01 via autocert) + custom certificate upload |
| Force HTTPS | Per-host 301 redirect from HTTP to HTTPS |
| HSTS | Configurable max-age, includeSubDomains, preload per host |
| SNI routing | TLS certificate selection based on SNI with custom + autocert fallback |
| Custom headers | Per-host request and response header injection/removal |
| Proxy timeouts | Configurable connect, read, write, idle timeouts |
| Host preservation | Preserve or rewrite the upstream Host header |
| X-Forwarded headers | Automatic X-Forwarded-For, X-Forwarded-Host, X-Real-IP injection |
| Max body size | Per-host request body size limit |
| Enable/disable | Toggle hosts on/off without deleting configuration |
Load Balancing Policies
| Policy | Description |
|---|---|
| Round-robin | Distributes requests evenly across all healthy upstreams |
| Least-connections | Routes to the upstream with the fewest active connections |
| IP-hash | Consistently routes the same client IP to the same upstream |
SSL/TLS
Aegis supports two certificate sources:Let’s Encrypt (Automatic)
- Uses ACME HTTP-01 challenge via
golang.org/x/crypto/acme/autocert - Certificates are requested and renewed automatically
- Requires port 80 to be reachable for challenge validation
Custom Certificates
- Upload PEM-encoded certificate and private key through the admin UI
- Private keys are encrypted at rest using AES-256-GCM
- Encryption key can be auto-generated or provided via
AEGIS_SSL_KEY
HSTS Configuration
Per-host HSTS headers with configurable:max-agedurationincludeSubDomainsdirectivepreloaddirective

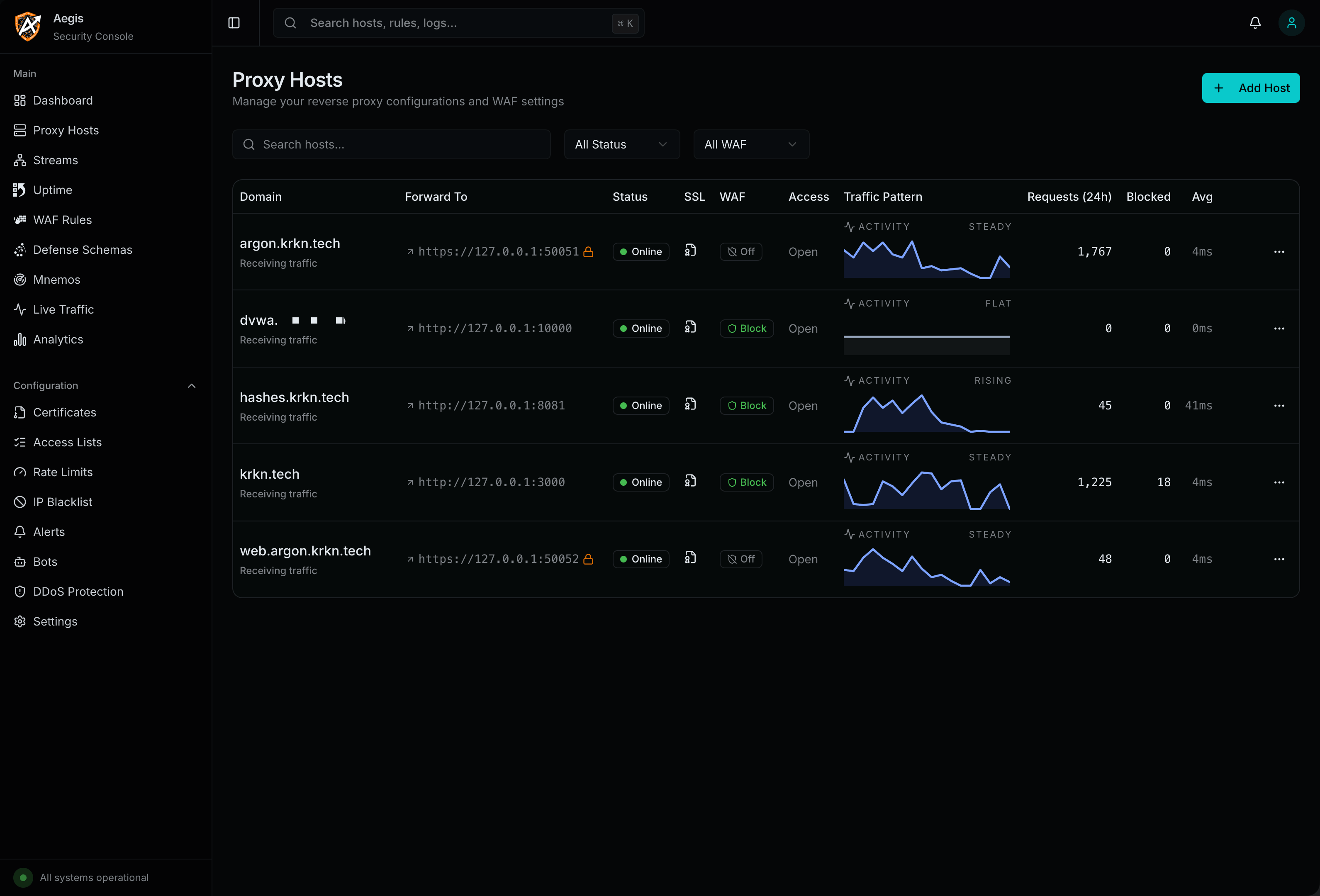

Proxy Host Configuration
Each proxy host supports the following settings:| Setting | Description |
|---|---|
| Domain(s) | One or more domain names for routing |
| Upstream(s) | Backend server addresses with port |
| Load balance policy | Round-robin, least-connections, or IP-hash |
| SSL mode | None, Let’s Encrypt, or custom certificate |
| Force HTTPS | Redirect HTTP to HTTPS |
| HSTS | Strict Transport Security settings |
| Custom headers | Request and response header modifications |
| Timeouts | Connect, read, write, idle timeouts |
| Preserve host | Forward original Host header to upstream |
| Max body size | Request body size limit |
| WAF mode | Off, detect, or enforce |
| Access list | Optional allow list attachment |
| Enabled | Toggle host on/off |
Health Checks
Active health checks probe each upstream backend at a configurable interval:- Path — HTTP path to check (e.g.,
/health) - Interval — Time between checks
- Behavior — Unhealthy upstreams are removed from the load balancer rotation and re-added when they recover
