Defense Schemas

Defense Schemas let you ingest an OpenAPI 3.x or Swagger 2.0 specification for any proxy host. Aegis parses the spec and auto-generates a set of per-endpoint defense rules that define what is structurally allowed — valid paths, HTTP methods, content-types, parameter names and types, and JSON request body shape. Requests that don’t conform to the schema are blocked or logged depending on the enforcement mode. Defense schema rules are separate from WAF rules. WAF rules detect malicious payloads within requests. Defense schema rules define what a valid request looks like in the first place. Both systems run — defense schemas enforce structure, WAF rules enforce content.

How It Works

                  ┌─────────────────────────────┐
  Upload spec     │                 Aegis                        │
  (file or URL)   │                                              │
       │          │  ┌───────┐    ┌───────────┐     │
      ──────►│  │  Ingestion │─►│  Defense Schema   │    │
                  │  │  (once)    │    │  Rules (stored)   │    │
                  │  └───────┘     └─┬─────────┘    │
                  │                             │ Reload          │
                  │                    ┌────────▼────┐   │
                  │                    │  Compiled Map        │   │
   Requests ──►│                     │  path → method →  │   │
                  │                    │  endpoint rule       │   │
                  │                    └──────────────┘   │
                  └──────────────────────────────┘

You upload an OpenAPI or Swagger spec (file or URL)
Aegis parses the spec, walks every endpoint, and generates a defense rule per path+method
Rules are stored in SQLite and compiled into a fast lookup map during reload
At request time, Aegis looks up the path in the map and validates the request against the matched rule

The spec is parsed once at ingestion. At runtime, it’s just a map lookup and type checks — no OpenAPI parsing on the hot path.

Supported Formats

Format	Version	Detection
OpenAPI	3.0.x, 3.1.x	`openapi` field starts with `3.`
Swagger	2.0	`swagger` field equals `"2.0"`

Both JSON and YAML files are supported. Format is auto-detected by content.

Ingestion

From File

Upload a .json or .yaml spec file through the admin UI. Drag-and-drop or click-to-browse

From URL

Provide an HTTP/HTTPS URL to the spec. Aegis fetches, parses, and stores the spec. The URL is saved so you can refresh the schema later to pick up spec changes. Common spec URLs:

/openapi.json
/swagger.json
/api-docs
/v3/api-docs
/.well-known/openapi.json

What Gets Extracted

For each endpoint (path + method) in the spec, Aegis generates a defense rule containing:

Component	Source	Example
Path pattern	Spec path	`/users/{id}/posts`
HTTP method	Operation	`POST`
Content-types	Request body content map (v3) or consumes (v2)	`application/json`
Path parameters	Parameter definitions with `in: path`	`id` (integer)
Query parameters	Parameter definitions with `in: query`	`page` (integer, required)
Header parameters	Parameter definitions with `in: header`	`X-Api-Version` (string)
Body schema	Request body JSON schema	Properties, types, required fields, enums

Enforcement Modes

Each defense schema has its own mode, independent of the host’s WAF mode:

Mode	Behavior
Enforce	Block requests that violate the schema. Returns the appropriate HTTP status code (400, 404, 405, 415).
Detect	Log violations but allow the request through. Violations appear in traffic logs with category `defense_schema`.
Off	Schema is stored but not evaluated at runtime.

What Gets Validated

When a request arrives and matches a defense schema endpoint:

Check	HTTP Code	Example Violation
Undefined path	404	`POST /api/v3/unknown` — path not in spec
Wrong method	405	`DELETE /users` — spec only allows GET, POST
Wrong content-type	415	`text/plain` body when spec requires `application/json`
Missing required parameter	400	Query param `page` missing when spec marks it required
Invalid parameter type	400	`?page=abc` when spec says integer
Invalid path parameter	400	`/users/abc` when spec says `{id}` is integer
Missing required body field	400	JSON body missing `email` when schema requires it
Wrong body field type	400	`"age": "twenty"` when schema says integer
Extra body field (strict)	400	`"hack": "value"` not defined in schema, strict mode on
Invalid enum value	400	`"status": "banana"` when enum is `["active", "inactive"]`

Options

Setting	Default	Description
Block Undefined Paths	`false`	Reject requests to paths not defined in the spec
Strict Body	`false`	Reject request body fields not defined in the schema

When Block Undefined Paths is off, requests to paths not covered by the schema pass through to the normal WAF pipeline without defense schema evaluation. When Strict Body is on, any JSON field in the request body that is not defined in the schema properties is rejected. This prevents attackers from injecting unexpected fields.

Multiple Schemas Per Host

A host can have multiple defense schemas — for example, one per API version or per microservice behind the same domain. When multiple schemas are attached to a host, they stack: the first schema that matches the request path wins. This allows versioned APIs (/api/v1/*, /api/v2/*) to each have their own spec.

Pipeline Position

Defense schema evaluation runs inside the WAF pipeline, after body size checks and before CORS validation:

WAF Mode Check
  │
  ▼
IP Checks (allowlist, timeout, blacklist)
  │
  ▼
Method Restriction
  │
  ▼
Body Size Limit
  │
  ▼
Defense Schema Evaluation  ◄── HERE
  │
  ▼
CORS Validation
  │
  ▼
Rate Limiting
  │
  ▼
WAF Rule Chain
  │
  ▼
Correlation (Mnemos)
  │
  ▼
Reverse Proxy

Defense schemas and WAF rules are independent. A request that passes defense schema validation still goes through the full WAF rule chain. A request blocked by a defense schema never reaches the WAF rules.

Lifecycle

Creation

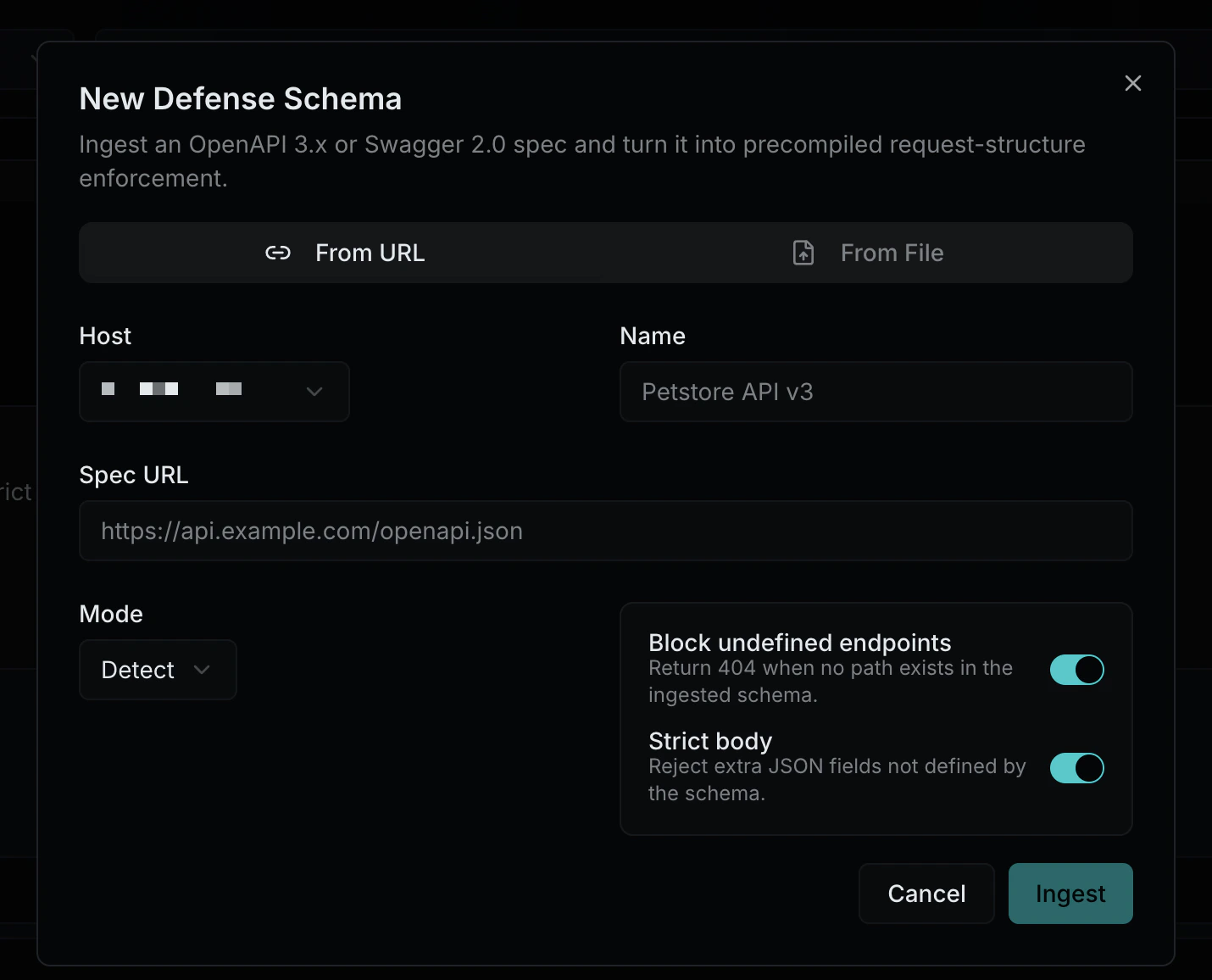

Navigate to the Defense Schemas page
Click + New Schema
Choose From URL or From File
Select the target host and set the enforcement mode

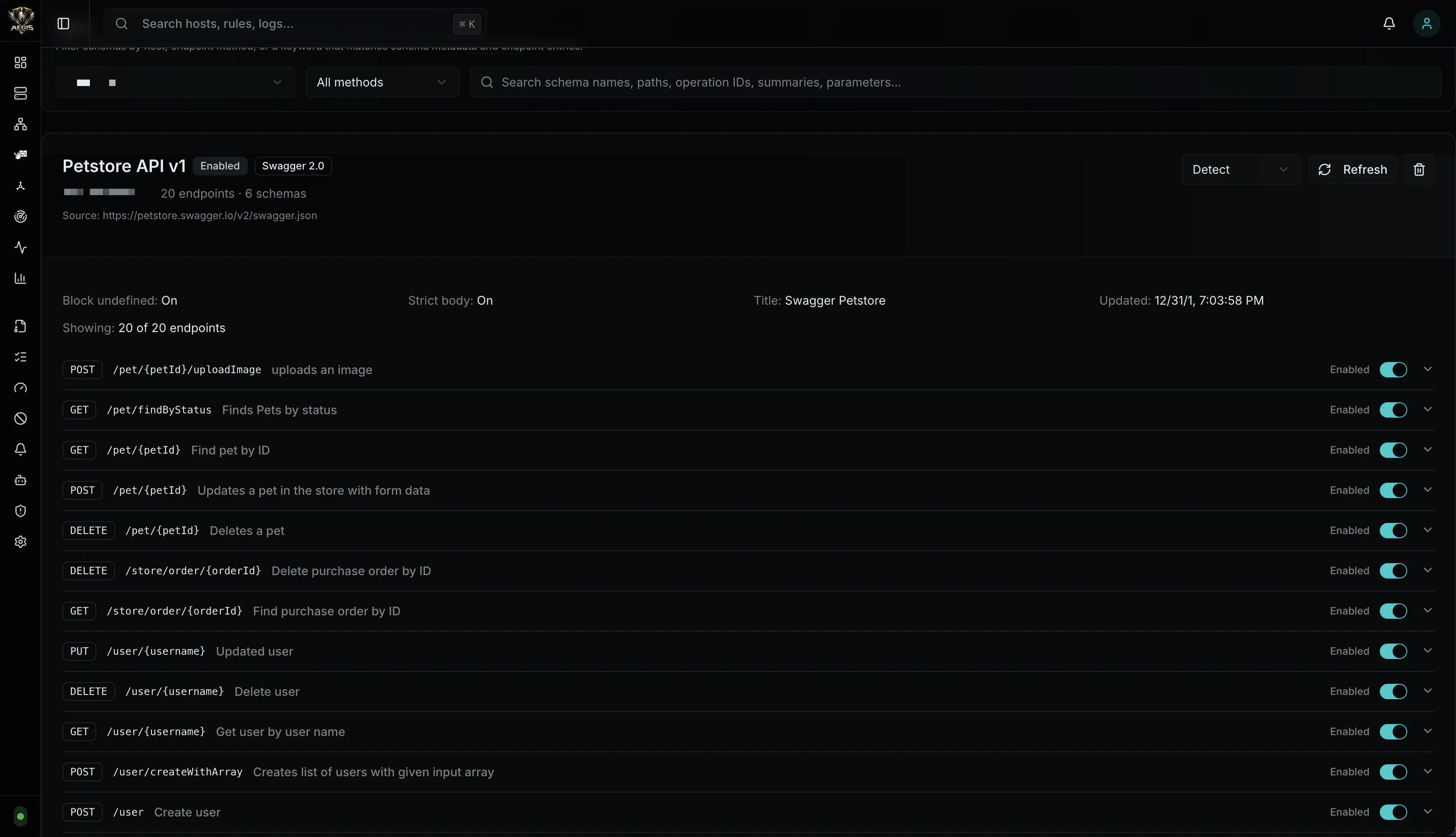

Upload or enter the URL — Aegis parses the spec and shows the generated rules
Each endpoint rule can be individually enabled or disabled

Updates

Refresh (URL sources only): Re-fetch the spec from the original URL, regenerate rules, and preserve per-rule enabled/disabled state
Mode change: Switch between enforce, detect, and off at any time
Rule toggle: Enable or disable individual endpoint rules without deleting the schema

Deletion

Deleting a defense schema removes all its rules. This is immediate — no confirmation beyond the delete dialog. Deleting a proxy host cascades to delete all its defense schemas.

Relationship to WAF Rules

	Defense Schema Rules	WAF Rules
Purpose	Define valid request structure	Detect malicious payloads
Source	Auto-generated from OpenAPI/Swagger spec	Built-in OWASP rules + custom authored rules
Storage	`defense_schemas` table	`waf_rules` table
Scope	Per endpoint (path + method)	Per host or global
Evaluation	Before WAF rule chain	After defense schema check
Management	Defense Schemas page	Rules page
Cascade	Deleted with schema or host	Independent lifecycle

Both systems are complementary. Defense schemas say “this endpoint expects a POST with a JSON body containing a name string and an age integer.” WAF rules say “this JSON body contains a SQL injection payload in the name field.” A properly protected host uses both.

API Reference

Method	Path	Description
`GET`	`/api/v1/defense-schemas?host_id={id}`	List defense schemas for a host
`GET`	`/api/v1/defense-schemas/{id}`	Get a defense schema with all its rules
`POST`	`/api/v1/defense-schemas/ingest`	Ingest a new spec (file upload or URL)
`PUT`	`/api/v1/defense-schemas/{id}`	Update schema settings (mode, options)
`DELETE`	`/api/v1/defense-schemas/{id}`	Delete a defense schema and all its rules
`PUT`	`/api/v1/defense-schemas/{id}/rules/{index}`	Toggle or update an individual endpoint rule
`POST`	`/api/v1/defense-schemas/{id}/refresh`	Re-ingest from the original URL

Defense Schema Object

Field	Type	Description
`id`	integer	Schema ID
`host_id`	integer	Associated proxy host
`name`	string	User-provided label
`spec_format`	string	`openapi3` or `swagger2`
`spec_version`	string	Spec version (e.g., `3.0.3`, `2.0`)
`spec_title`	string	Title from the spec’s info block
`source_type`	string	`file` or `url`
`source_url`	string	Original URL (if ingested from URL)
`mode`	string	`enforce`, `detect`, or `off`
`block_undefined`	boolean	Block requests to paths not in the spec
`strict_body`	boolean	Reject extra body fields not in the schema
`endpoint_count`	integer	Number of generated endpoint rules
`schema_count`	integer	Number of named schemas in the spec
`rules`	array	List of DefenseSchemaRule objects
`enabled`	boolean	Whether the schema is active

Defense Schema Rule Object

Field	Type	Description
`path`	string	Endpoint path pattern (e.g., `/users/{id}`)
`method`	string	HTTP method
`operation_id`	string	Operation ID from the spec
`summary`	string	Operation summary from the spec
`enabled`	boolean	Whether this endpoint rule is active
`content_types`	array	Allowed request content-types
`parameters`	array	Expected parameters with name, location, type, and constraints
`body_schema`	object	Expected JSON body structure with properties, types, and required fields
